Industrial bakeries face immense operational pressure to scale throughput without compromising the crumb structure, moisture content, or visual consistency of the final product. Transitioning from semi-automated to fully automated manufacturing exposes significant friction points on the plant floor. Facilities frequently encounter bottlenecking between the mixing and baking stages, inconsistent volumetric depositing, substantial ingredient yield loss, and excessive labor requirements associated with manual changeovers and sanitation protocols.
Addressing these inefficiencies requires a systematic approach to facility design and equipment integration. This technical blueprint covers evaluating, sizing, and implementing an automated cake production line. We will examine the core process flows, equipment specifications, and risk mitigation strategies necessary to ensure seamless capacity scaling, strict hygienic compliance, and maximized overall equipment effectiveness without relying on manual intervention.
Throughput Alignment: A successful cake production line requires exact synchronization between mixer output (kg/hr) and oven bandwidth to prevent batter degradation and production bottlenecks.
Sanitation as a Cost Factor: Equipment evaluated strictly on purchase price often hides long-term operational costs; prioritize Clean-in-Place (CIP) systems and sanitary design to minimize changeover downtime.
Modularity is Mandatory: Future-proofing requires modular depositing and finishing systems capable of handling varying viscosities, inclusions, and product formats (e.g., layer cakes, cupcakes, pound cakes) on a single line.
Table of Contents
The transition from manual scaling to automated bulk ingredient handling fundamentally stabilizes batch consistency. Industrial systems utilize indoor or outdoor silos equipped with pneumatic conveying lines to deliver flour and sugar directly to the mixing station. Liquid dosing systems handle water, liquid eggs, and oils, utilizing mass flow meters to ensure exact volumetric additions. This eliminates the variability inherent in manual scooping and weighing.
Selecting the correct mixing technology depends heavily on the specific gravity and aeration requirements of the batter. Continuous mixing systems excel in high-throughput environments where recipe changes are infrequent, providing a steady stream of homogenous batter. Pressurized batch mixing systems, particularly those utilizing high-shear stators, are necessary for sponge cakes that require aggressive aeration. Conversely, low-shear planetary or horizontal mixers are better suited for dense pound cakes or muffin batters where over-mixing develops unwanted gluten.
Maintaining batter stability during the mixing phase requires precise environmental control. Jacketed mixing bowls integrated with chilled water loops prevent batter temperatures from rising due to mechanical friction. Automated specific gravity monitoring systems continuously measure the density of the batter, allowing the programmable logic controller (PLC) to adjust mixing speeds or aeration rates in real-time, ensuring the batter enters the depositor at the optimal consistency.
Industrial cake manufacturing often requires a dedicated subsystem for preparing creams, custards, fruit fillings, and glazes. This cream kitchen operates in tandem with the main baking line. Automated aeration systems are deployed to whip fresh dairy or synthetic creams to exact overrun percentages, ensuring consistent volume and texture for layer cakes and roll cakes.
Viscosity control is paramount when handling fillings. Jacketed storage tanks maintain strict temperature parameters, preventing custards from setting prematurely or buttercreams from breaking. Inline tempering units gently adjust the temperature of chocolate or fat-based glazes immediately prior to application. To maintain microbiological safety and prevent cross-contamination, the entire filling preparation area relies on clean, sterile piping manifolds equipped with automated pigging systems to recover residual product and prepare the lines for sanitation.
Volumetric accuracy at the depositing stage directly impacts bake times, product uniformity, and ingredient giveaway. An automated depositing system must deliver precise batter weights into moving pans or molds without tailing or splashing.
Different batter characteristics require specific depositor configurations. The table below outlines the primary depositor types used in industrial applications:
Depositor Type | Best Suited For | Key Characteristics |
|---|---|---|
Piston Depositors | Highly aerated batters (sponge cake), liquid batters. | Gentle handling preserves aeration; high volumetric accuracy for thin to medium viscosities. |
Gear Wheel Depositors | Dense batters, heavy pound cakes, muffins. | Positive displacement handles high viscosity; excellent for continuous ribbon depositing. |
Extrusion Systems | Stiff doughs, batters with heavy inclusions (fruit, chocolate chips). | Prevents crushing of inclusions; handles highly viscous materials without clogging. |
Modern depositing stations integrate advanced sensor technologies to prevent equipment fouling. No-Pan, No-Deposit and No-Cup, No-Deposit optical sensors verify the presence and correct alignment of the receptacle before triggering the dosing cycle. This eliminates batter waste and prevents the conveyor belt from becoming contaminated. Upstream of the depositor, automated pan handling systems manage the continuous feed of baking trays, integrating automated greasing sprayers or paper-cup dispensing mechanisms to prepare the molds.

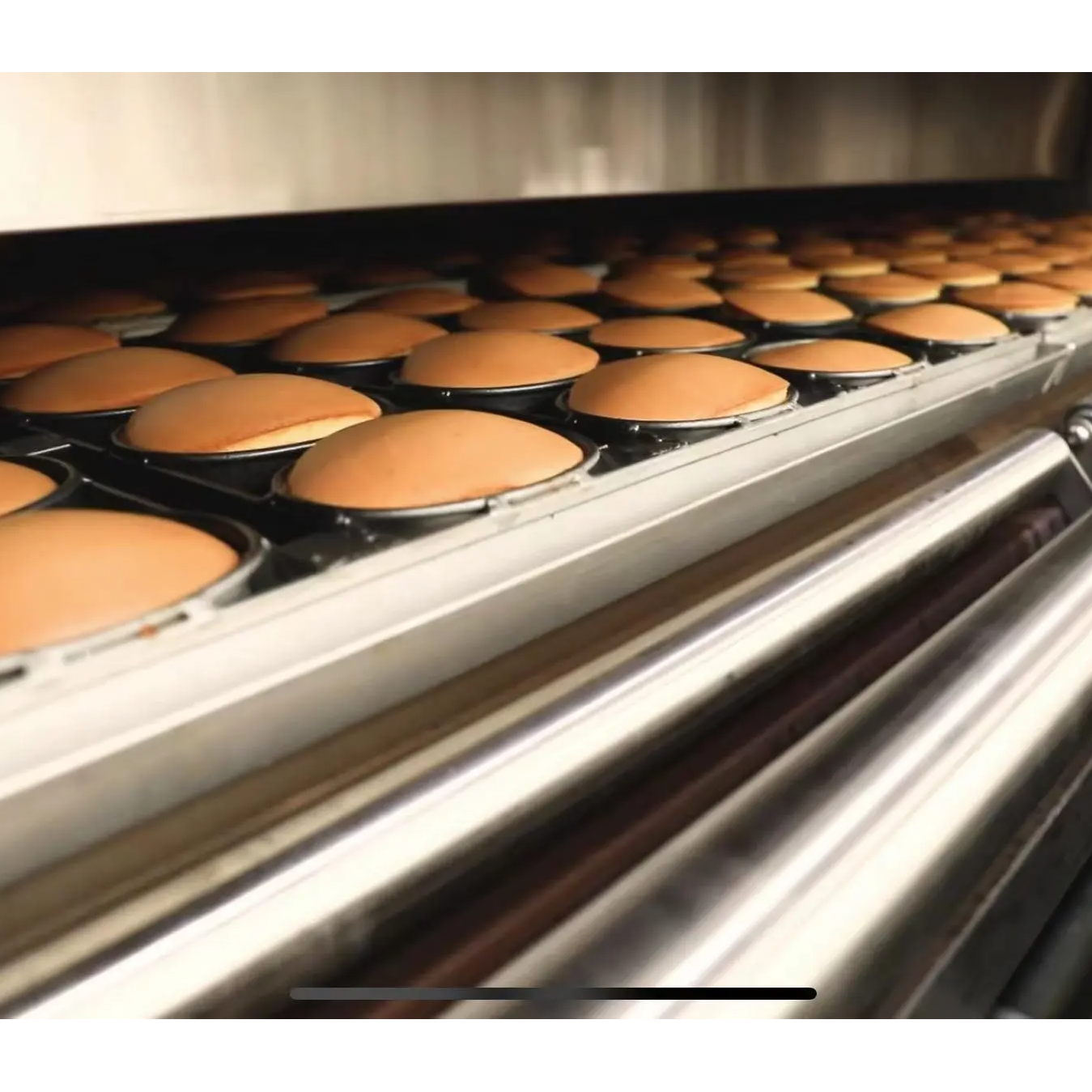

The oven is the thermal anchor of the production line. Continuous tunnel ovens are the standard for high-throughput cake manufacturing, available in direct gas-fired, indirect radiant, convection, and hybrid configurations. Indirect radiant ovens are frequently preferred for delicate cakes, as they provide gentle, even heat transfer without exposing the product to combustion byproducts.
Achieving uniform baking requires sophisticated zone-by-zone thermal profiling. Industrial tunnel ovens are divided into multiple heating zones, allowing operators to set distinct temperature curves. The initial zones may utilize high bottom heat for rapid volume expansion, while subsequent zones balance top and bottom heat to set the crumb structure and develop the crust. Lateral heat distribution must be meticulously balanced to ensure cakes on the edge of the conveyor band bake at the exact same rate as those in the center.
Moisture retention is managed through integrated steam injection systems, which control the humidity within the baking chamber during the initial baking phase. Continuous conveyor band cleaning brushes and automated scraping blades operate on the return loop of the oven belt, removing carbonized debris to maintain thermal transfer efficiency and prevent product contamination.
Automated cake lines utilizing rigid baking pans require a closed-loop pan transit system. Once the baked cakes exit the oven, the pans enter a post-depanning cooling circuit. The empty pans are then routed through inline industrial pan washers, which utilize high-pressure hot water and caustic detergents to remove baked-on residue. High-velocity air-knife drying systems strip residual moisture from the pans before they are conveyed back to the depositing station.
Maintaining the precise timing of this loop requires robust mechanical and magnetic pan indexing systems. These mechanisms ensure pans are perfectly aligned as they re-enter the greasing and depositing stations, preventing jams and maintaining the continuous flow of the line.
Cakes must be adequately cooled before depanning or finishing to prevent crumb tearing and structural collapse. Ambient spiral cooling towers offer high capacity within a compact vertical footprint. However, for facilities operating in humid environments or requiring rapid throughput, active forced-cooling systems utilizing chilled, filtered air are necessary. Forced cooling accelerates crumb stabilization but requires strict environmental controls to prevent condensation, which can foster mold growth.
Automated depanning technologies are selected based on the product format. Needle depanners physically pierce dense cakes to lift them from the pans, while vacuum suction cups offer a non-destructive method for delicate sponge cakes. Inversion and clamping systems physically rotate the pans, utilizing gravity and vibration to release the product onto the cooling belt.

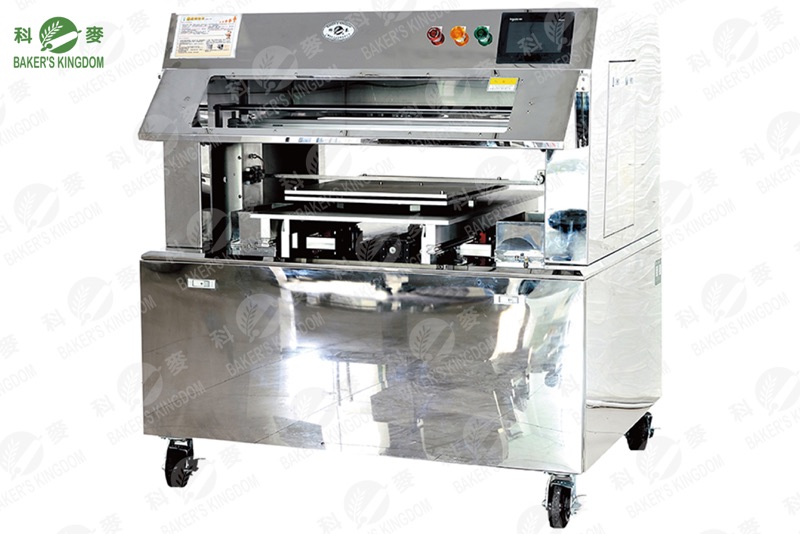

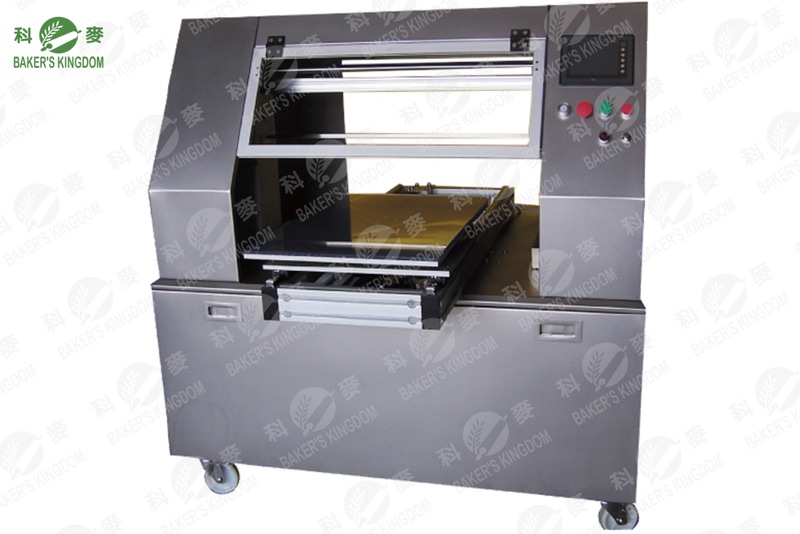

The finishing stage is highly modular. Horizontal slicing operations utilize multi-wire or ultrasonic cutting blades to cleanly divide cakes into layers without generating excessive crumb waste. Subsequent stations handle syrup injection for moisture enhancement, enrobing for chocolate coatings, and precise icing applications. For multi-layer cakes, automated assembly systems manage layer alignment, apply cream fillings, execute side-scraping for a smooth finish, and utilize robotic arms for intricate border piping.
Manual inspection is insufficient for high-speed automated lines. 3D vision inspection systems are deployed to scan every product, verifying volume, height, color consistency, and topping placement. Products failing to meet programmed specifications are automatically tracked and removed from the line.
In-line checkweighers ensure compliance with net weight declarations. These systems communicate with automated air-blast or mechanical pusher reject lanes to divert under-weight or over-weight products. Critical control points (CCPs) are strictly enforced through the integration of metal detectors and X-ray inspection systems, which scan for foreign objects such as stainless steel shavings or dense plastics. Seal-integrity testing equipment verifies the final packaging to prevent premature spoilage.
The transition from the cooling spiral to the packaging sector must be seamless to prevent bottlenecks. Primary packaging formats include flow wrapping for individual snack cakes, thermoformed trays for delicate layer cakes, and rigid clamshells. Secondary packaging automation includes robotic cartoning, case packing, and end-of-line palletizing.
To extend shelf life without relying heavily on chemical preservatives, Modified Atmosphere Packaging (MAP) is frequently integrated into the flow wrapping or tray sealing process. Nitrogen flushing displaces oxygen within the package, significantly delaying lipid oxidation and inhibiting aerobic microbial growth.
Industrial bakeries rarely produce a single SKU. Equipment must be evaluated on its ability to transition rapidly between different product formats. Success criteria for changeovers include tool-less disassembly of product-contact parts, recipe-driven PLC adjustments that automatically reset conveyor speeds and oven profiles, and the use of mobile wash-down carts for offline sanitation of depositor heads.
Applying Single-Minute Exchange of Die (SMED) principles to bakery equipment drastically reduces downtime. Quick-interchangeable depositing heads allow operators to swap from a muffin batter manifold to a sheet cake extrusion nozzle in minutes rather than hours. Equipment flexibility ensures a single line can handle varying specific gravities, inclusion sizes, and baking profiles without requiring extensive mechanical modifications.
Sanitary design is a non-negotiable requirement. Equipment must meet stringent standards, including IP69K washdown ratings for electrical enclosures, sloped stainless steel surfaces to prevent water pooling, and continuous-welded tubular frames that eliminate harborage points for bacteria.
The integration of Clean-in-Place (CIP) and Wash-in-Place (WIP) systems automates the internal cleaning of liquid dosing lines, cream holding tanks, and depositor hoppers. These systems circulate alkaline cleaners, acidic neutralizers, and sanitizers at specific flow rates and temperatures, ensuring compliance with FSMA, GFSI, EHEDG, and BRC standards. Hygienic zoning is also critical; physical barriers and positive air pressure systems utilizing HEPA filtration must isolate high-risk decoration and cooling zones from the raw ingredient handling areas to prevent cross-contamination.
A high-performance line relies on centralized HMI (Human-Machine Interface) systems for comprehensive recipe management. Instead of adjusting individual machines, operators select a recipe on the master HMI, which cascades the necessary parameters (mixer speed, depositor weight, oven temperature, cooling time) across the entire line.
SCADA (Supervisory Control and Data Acquisition) integration and open communication protocols, such as OPC UA, enable real-time data tracking. This connectivity provides critical insights into ingredient traceability, line efficiency, and predictive maintenance alerts, allowing maintenance teams to address component wear before it results in unplanned downtime.
Optimizing throughput requires exact mathematical synchronization between upstream preparation and downstream processing. The continuous output of the mixing and depositing stations must perfectly match the dwell time and physical bandwidth of the tunnel oven. If the depositor operates faster than the oven can accept pans, batter sits idle, losing aeration and degrading in quality.
Capacity calculations must account for Bake-out Loss—the moisture evaporated during the baking process, which typically ranges from 5% to 10% of the initial batter weight. Theoretical throughput (calculated by multiplying depositor strokes per minute by the weight per stroke) must be adjusted for this loss, as well as anticipated OEE factors, to determine the actual finished product yield in kilograms per hour.
Industrial cake lines require substantial floor space. Facility layout configurations—whether straight-line, U-shape, or L-shape designs—are dictated by existing architectural constraints, load-bearing walls, and required cleanroom partitions. Straight-line configurations offer the simplest mechanical flow but require massive linear footage. U-shape layouts optimize floor space and allow operators to manage both the depositing and packaging ends of the line from a centralized location. Vertical integration, specifically the use of spiral cooling towers and overhead pan return conveyors, is essential for maximizing throughput per square meter of facility space.
Installing a line based solely on current production requirements limits future growth. Designing the system with ghost capacity involves sizing critical, difficult-to-replace components—such as the tunnel oven and cooling spiral—for future throughput targets. In the near term, the line operates at current capacity requirements by utilizing slower belt speeds, partial band width utilization, or reduced shift schedules. As demand increases, the facility can scale output simply by increasing depositor speeds and optimizing oven dwell times, avoiding the need for massive capital retrofits.
Deploying a new automated line presents significant operational risks. Retrofitting an existing facility introduces complexities regarding utility integration, structural floor loads, and the disruption of ongoing operations. Greenfield installations offer a blank slate but require extensive site preparation.
Mitigating these risks requires a rigorous testing framework. Factory Acceptance Testing (FAT) must be conducted at the OEM facility, running the equipment with the actual batter recipes to verify performance before shipment. Site Acceptance Testing (SAT) follows installation, ensuring all utility connections, PLC integrations, and mechanical alignments function correctly in the production environment. Phased rollouts, where subsystems are commissioned sequentially, prevent catastrophic facility-wide downtime.
Transitioning from mechanical, manually operated equipment to highly automated, PLC-driven systems exposes a significant skills gap on the plant floor. Operators must shift from physical manipulation of the product to digital oversight of the process.
Successful adoption relies on comprehensive, vendor-supplied training programs executed prior to commissioning. Standard operating procedure (SOP) documentation must be updated to reflect the new digital interfaces, CIP protocols, and troubleshooting pathways. Cross-training maintenance personnel on the specific servo drives, sensors, and pneumatic manifolds used on the line is critical for maintaining high availability.
Relying on specialized equipment manufacturers introduces supply chain vulnerabilities, particularly if the OEM is located overseas with limited domestic engineering support. A minor component failure can halt production for weeks if replacement parts are caught in customs.
Facilities must negotiate strict Service Level Agreements (SLAs) during the procurement phase. Requirements should include guaranteed response times for technical support, remote troubleshooting capabilities via secure VPN access to the line's PLC, and the provision of a comprehensive critical spare parts inventory to be kept on-site. Identifying local machining and fabrication partners for non-proprietary components further insulates the facility from supply chain disruptions.
Choosing the right cake production line is essential for maximizing production efficiency, ensuring consistent product quality, and supporting long-term business growth. An integrated automation system helps manufacturers streamline production, improve food safety, and adapt quickly to changing market demands.
At Baker's Kingdom, we specialize in advanced cake production lines and customized industrial bakery equipment for commercial manufacturers worldwide. Our complete automation solutions and professional engineering support help customers improve productivity, maintain consistent product quality, and build efficient, future-ready bakery operations.
Before investing in a cake production line, carefully evaluate your product portfolio, production capacity, sanitation requirements, factory layout, automation level, and future expansion plans to ensure the best long-term manufacturing solution for your bakery.
A: Footprint varies drastically based on throughput, oven length, and cooling methods. A straight-line configuration producing 1,000 kg/hr typically requires between 500 and 1,000 square meters. Utilizing spiral cooling towers and U-shaped layouts can significantly compress the required linear footage.
A: Standard lead times range from 8 to 14 months from the issuance of the purchase order to final site commissioning. This timeline accounts for custom engineering, manufacturing, Factory Acceptance Testing (FAT), shipping, and on-site integration.
A: Yes, provided the line is designed with modularity. This requires interchangeable depositing heads (e.g., piston for sponge, gear wheel for pound cake) and a multi-zone oven with highly adjustable thermal profiles to accommodate different baking times and specific gravities.
A: Overall Equipment Effectiveness (OEE) is calculated by multiplying Availability, Performance, and Quality. In a bakery, this means factoring in downtime for pan changeovers (Availability), minor stops or speed reductions (Performance), and waste from over-baked or rejected cakes (Quality).
A: Direct gas-fired ovens combust fuel directly inside the baking chamber, offering rapid heat transfer but exposing the product to combustion gases. Indirect radiant ovens burn fuel in a separate heat exchanger, radiating clean heat into the chamber, which is ideal for delicate cakes requiring gentle baking.
A: Allergen management relies on automated Clean-in-Place (CIP) systems to flush liquid lines, physical segregation of raw ingredient dosing, and strict production scheduling (running allergen-free products first). Hygienic design with sloped surfaces and no harborage points ensures thorough sanitation between runs.
